Overview

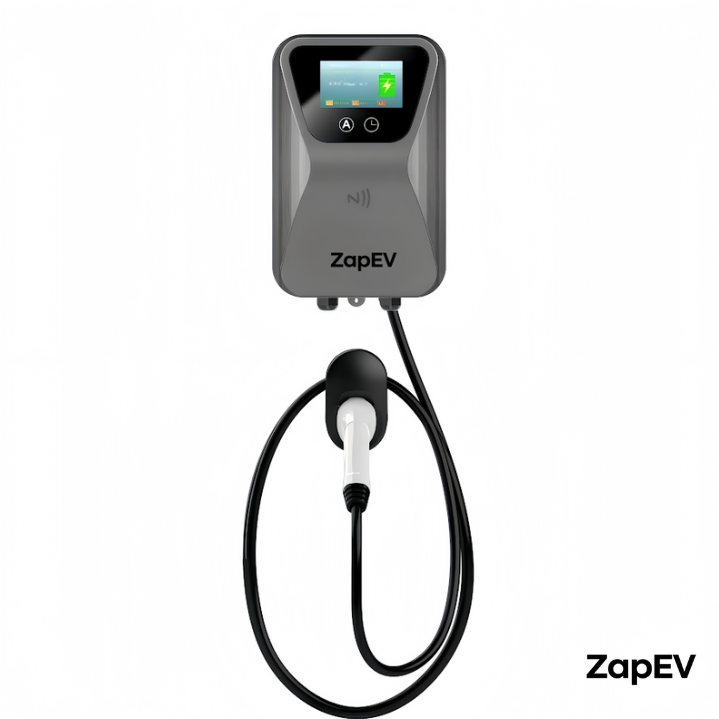

Upgrade your EV charging experience with the ZapEV Beta AC Wall Mount Charger, a reliable and intelligent charging solution designed for all environments — home, parking, or commercial use.
Key Features
- Smart Control: WiFi + Mobile App connectivity for remote monitoring and control.
- Multiple Plug Options: SAE J1772 (Type 1), IEC 62196 (Type 2), or GBT.
- Adjustable Output: 7kW / 9.6kW / 11kW / 22kW models available.
- LCD Display: 4.3-inch interactive screen showing charging status and energy data.
- NFC Access: Secure activation and usage tracking.

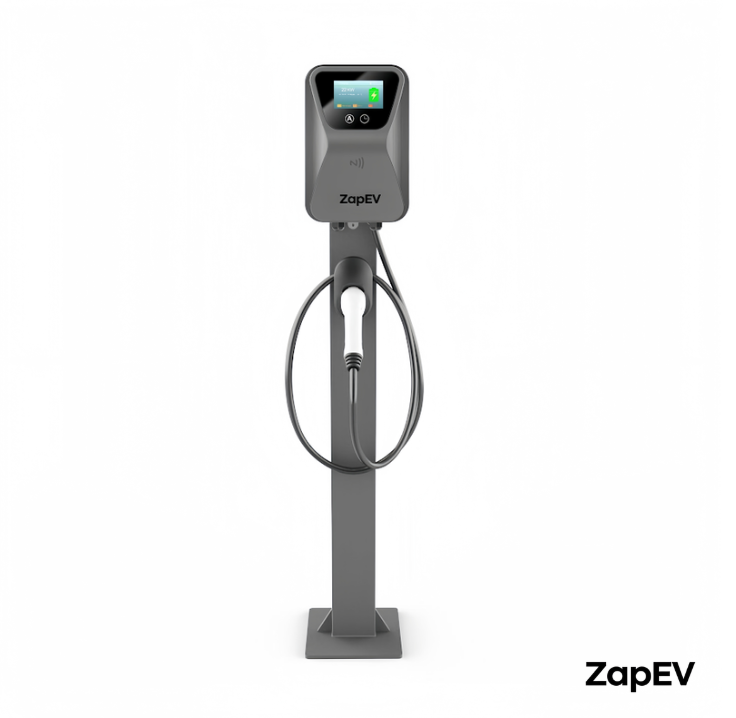

- Flexible Installation: Wall-mounted or floor-stand setup.
- Safety Protection: Overvoltage, overcurrent, short circuit, leakage, temperature, and ground insulation monitoring.
- Durable Design: IP55/IP65-rated enclosure for harsh environments.
Ideal Applications
✅ Residential Homes
✅ Parking Lots
✅ Commercial Buildings
✅ Fleet Charging

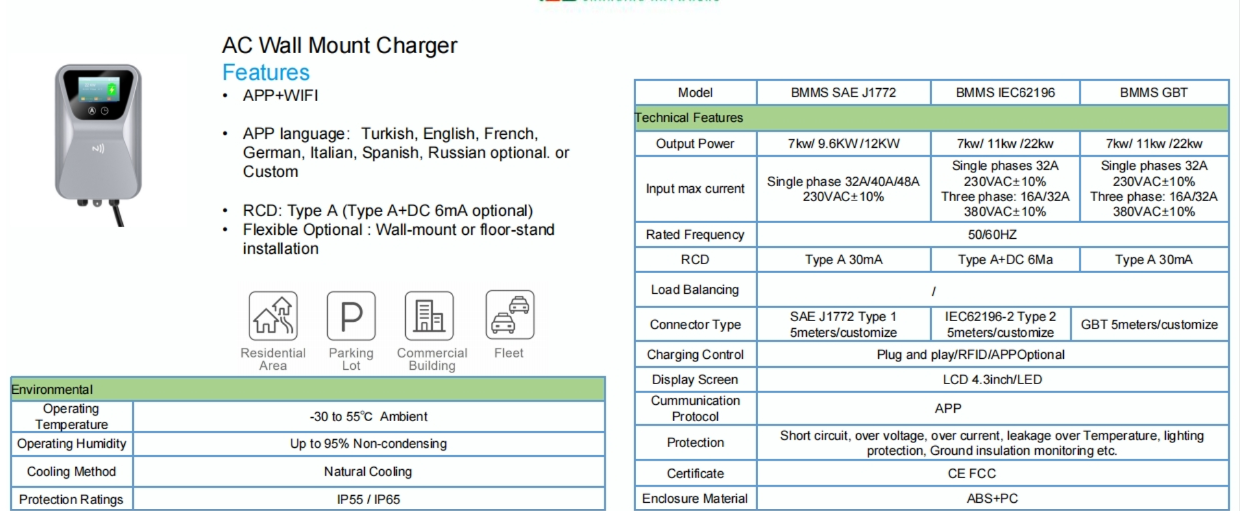

Technical Specifications
| Category | Specification |
|---|---|
| Model Options | BMMS SAE J1772 / BMMS IEC62196 / BMMS GBT |
| Output Power | 7kW / 9.6kW / 11kW / 22kW |
| Input Voltage | 230VAC ±10% (Single Phase) / 380VAC ±10% (Three Phase) |
| Input Current | 32A / 40A / 48A |
| Rated Frequency | 50 / 60 Hz |
| RCD Protection | Type A 30mA or Type A+DC 6mA (optional) |
| Connector Type | Type 1 (SAE J1772) / Type 2 (IEC62196) / GBT |
| Cable Length | 5 meters (customizable) |
| Control Method | Plug & Play / RFID / App |
| Display Screen | 4.3-inch LCD or LED |
| Communication Protocol | APP / WiFi |
| Cooling Method | Natural Cooling |
| Protection | Over voltage, Over current, Short circuit, Leakage, Temperature, Ground fault |
| Operating Temperature | -30°C to +55°C |
| Operating Humidity | Up to 95% (non-condensing) |
| Enclosure Material | ABS + PC |
| Protection Rating | IP55 / IP65 |
| Certifications | CE, FCC |
In the Box
- ZapEV Wall Mount Charger Unit
- 5m Charging Cable
- Mounting Kit
- User Manual
