Overview
Charge your EV anywhere with the ZapEV 32A Portable Charger — a compact, intelligent, and travel-friendly charging solution.
Equipped with a Blue CEE 3×32A plug, this charger supports up to 7.4kW output on a single-phase 220V connection and ensures full safety with built-in protection systems.
Key Features
- Portable Design: Easy to carry and use anywhere — home, work, or travel.
- Powerful Output: 7.4kW charging power for faster top-ups.

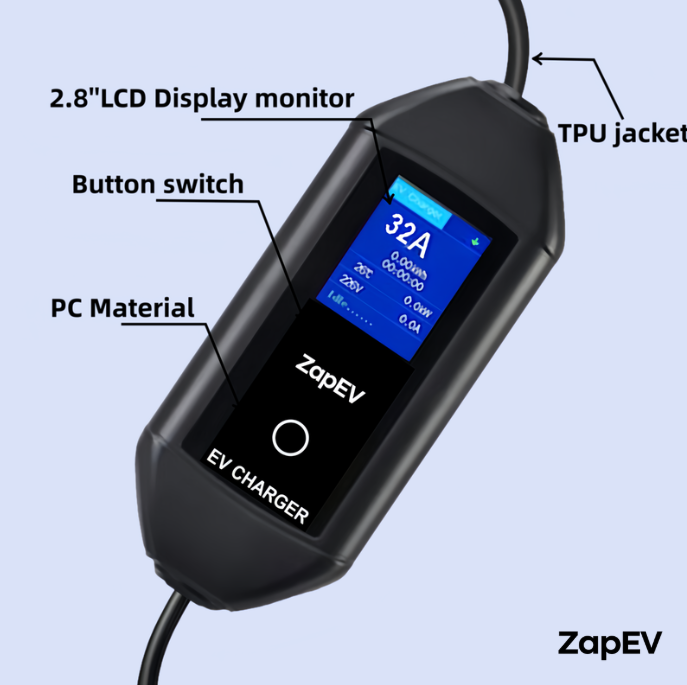

- Smart LCD Display: Real-time monitoring of voltage, current, temperature, and energy use.
- Adjustable Current: Select between 8A, 10A, 13A, 16A, or 32A.

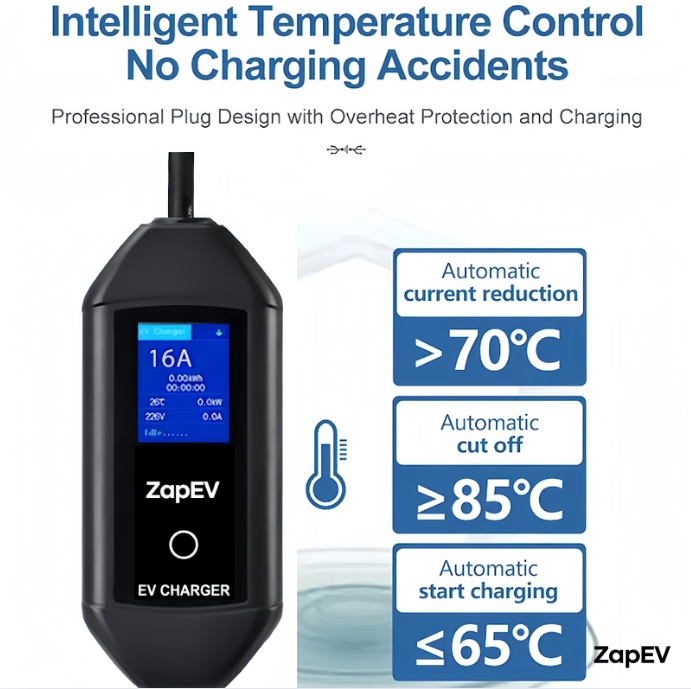

- Safety First: Protection against short circuit, overcurrent, overvoltage, temperature, and leakage.
- IP65 Waterproof: Safe for outdoor charging in any weather.
- Plug-and-Play Operation: No installation required — simply connect and charge.
- Universal Compatibility: Works with all Type 2 (IEC 62196) electric vehicles.
Ideal Applications
✅ Home Charging
✅ Workplace Charging
✅ Road Trips / Travel Use
✅ Public Parking or Garages

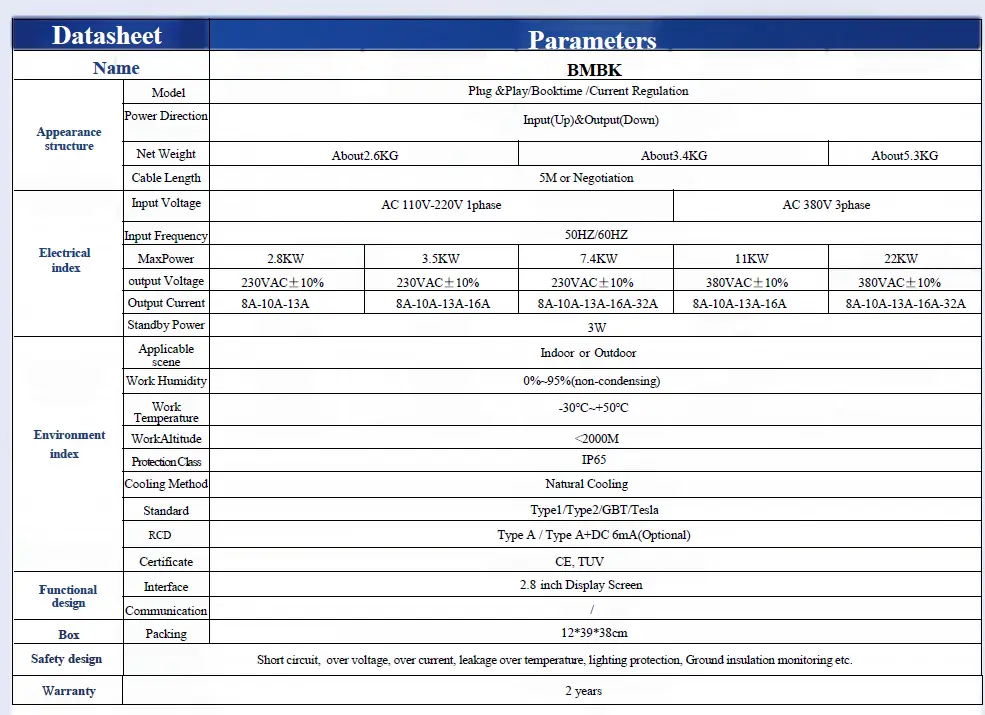

Technical Specifications
| Category | Specification |
|---|---|
| Model | BMBK |
| Input Voltage | AC 110V–220V (Single Phase) |
| Frequency | 50Hz / 60Hz |
| Max Power Output | 7.4kW |
| Output Voltage | 230VAC ±10% |
| Output Current | 8A / 10A / 13A / 16A / 32A Adjustable |
| Plug Type | Blue CEE 3×32A |
| Connector Type | Type 2 (IEC 62196) |
| Cable Length | 5 meters |
| Standby Power | 3W |
| Protection Rating | IP65 (Dustproof & Waterproof) |
| Cooling Method | Natural Cooling |
| Display Screen | 2.8-inch LCD Screen |
| Operating Temperature | -30°C to +50°C |
| Operating Humidity | 0–95% (non-condensing) |
| Work Altitude | <2000m |
| Applicable Scene | Indoor or Outdoor |
| RCD Type | Type A / Type A+DC 6mA (optional) |
| Certifications | CE, TUV |
| Product Dimensions | 12 × 39 × 38 cm (package) |
| Net Weight | Approx. 3.4 kg |
| Cooling Method | Natural Air Cooling |
| Warranty | 2 Years |
In the Box
- 1× ZapEV 32A Portable EV Charger
- 1× Blue CEE Plug (3×32A)
- 1× 5m Type 2 Cable
- 1× User Manual
